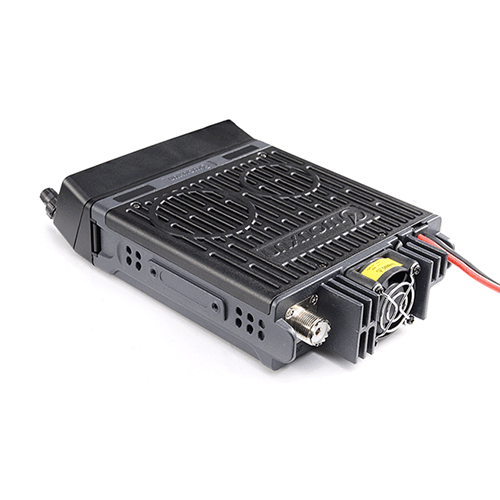

Wouxun Stationary Radio KG-UV950P

>>>Wouxun Stationary Radio KG-UV950P

Wouxun Stationary Radio KG-UV950P

Out of stock

Wouxun Stationary Radio KG-UV950P
• Scan channel adding /deleting
• Grouping channel scanning
• Multiple scanning ways
• Remote control setting
• Multiple setting for cooling fan

SKU: KG-UV950P Stock Status : Out of Stock Category: Tag:
Details :
General
Frequency RangeFrequency Range Suitable for any Region of
any Region of any Country
Step Frequency5KHz/6.25KHz/10KHz/12.5KHz/20KHz/25KHz/
30KHz/50KHz/100KHz
Memory Channels999
Work ModeF2D/F3E
Operating Temperature-20°C~+60°C
Power Requirement13.8VDC±15%(Negative Grounded)
Antenna Impedance50Ω
Weight1437.8g(Including Microhone )
Dimensions140x44x207(mm)
Receiver
Wide BandwidthNarrow Bandwidth
Adjacent Channel Selectivity≥70dB≥60dB
Intermodulation≥65dB≥60dB
Spurious Response≥70dB≥70dB
Audio Response+1~-3dB(0.3~3KHz)+1~-3dB(0.3~2.55KHz)
Signal to Noise Ratio≥45dB≥40dB
Audio Distortion≤5%≤5%
Audio PowerTransceiver≤3W
Hand Microphone≤1W
Transceiver≤3W
Hand Microphone≤1W
SensitivityUHF/VHF:0.25µVUHF/VHF:0.25µV
Transmitter
Wide BandwidthNarrow Bandwidth
Output Power50W/25W/10W/5W(VHF)40W/25W/10W/5W(UHF)
Type of Modulation16K F3E11K F3E
Adjacent Channel Power≥70dB≥60dB
Signal to Noise Ratio≥40dB≥36dB
Spurious≥60dB≥60dB
Audio Response+1~-3dB(0.3~3KHz)+1~-3dB(0.3~2.55KHz)

Description

Description of Features

• Twin band /same band simultaneous reception
• Dual display
• 999 memory channels
• Front panel and radio body flexible for separation
• Duplex mode
• Duplex cross-band repeat
• QT/DOT encoding and decoding
• QT/DOT scanning
• Non-standard CTCSS/DCS setting freely
• Same -band repeat on two combined radios
• High power output
• Dual track and multi-way loudspeakers

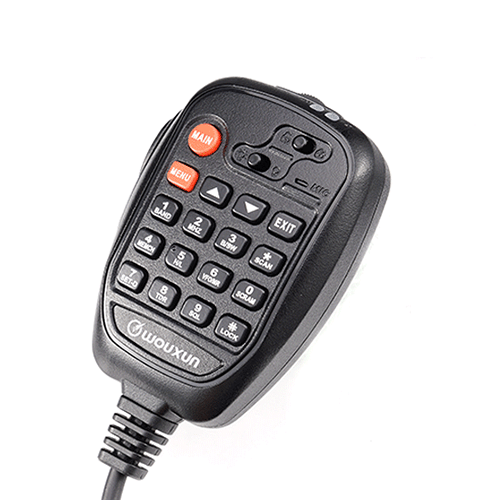

• Hand microphone DTMF with loudspeakers, receiving indicator and volume adjuster
• Caller ID display
• DTMF encoding and decoding
• Group calls, all calls and selective calls
• 8groups of scrambler
• Priority channel scanning
• APO power management
• Wide / narrow bandwidth select able
• Voice guide
• Automatic temperature detection
• Stun/kill function
• Single audio pulse frequency
• Multiple back light color select able
• Scan channel adding /deleting
• Grouping channel scanning
• Multiple scanning ways
• Remote control setting
• Multiple setting for cooling fan

Accessories
• Flat switchboard

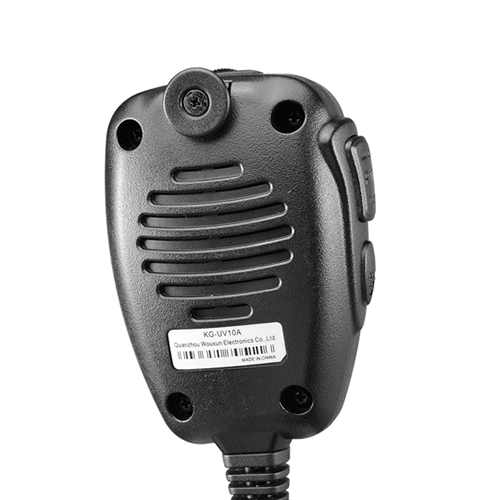

• Hand microphone(+hook)
• Mobile mounting bracket
• Screw bets and fuse
• Remote front panel bracket
• Mobile power cord and extension cable
• User’s manual
• Service card
